HR Attrition Analysis & Prediction

Rachel Hill-Tsarpelas | Data Analyst Portfolio Project

Project Overview

This project investigates employee attrition with the goal of identifying patterns, risk factors, and actionable insights that can support HR decision-making. The analysis follows a structured, multi-day workflow covering data understanding, visualization-driven exploration, and machine learning modeling.

What This Project Demonstrates

End-to-end data analysis workflow: exploratory analysis, predictive modeling, and business-facing visualization
Ability to distinguish between visually strong patterns and model-supported drivers of attrition
Translation of technical findings into actionable HR insights using Power BI

Objectives

Suggest hypotheses about the causes of observed employee attrition
Assess assumptions on which statistical inference will be based
Support the selection of appropriate statistical tools and techniques
Provide a basis for further data collection or HR interventions

Part 1 — Data Overview

Loaded dataset
Identified numeric/categorical columns
Checked for missing values
Summarized key variables and observed class imbalance (~16% attrition)

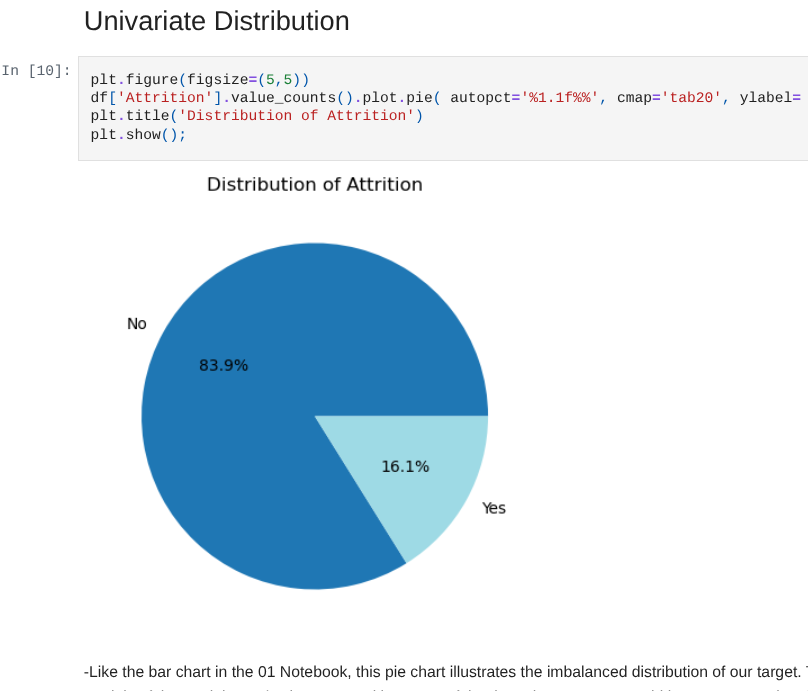

Visual — Summary of Attrition Imbalance
Day 1 Summary

Part 2 — Exploratory Visualizations

Explored attrition patterns by demographic and work-related factors
Visuals indicate higher attrition for employees with overtime, younger age, or early career stage
Linear correlation insufficient, non-linear effects likely

Visuals — 2

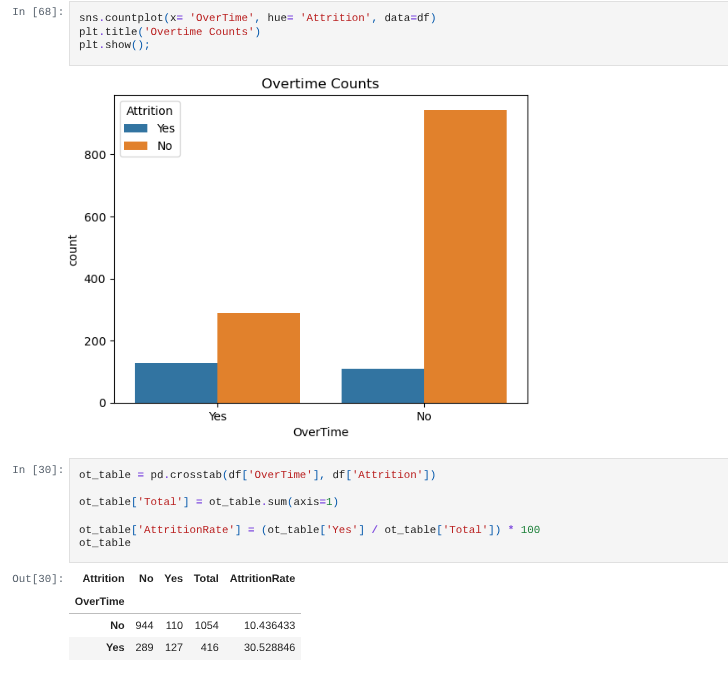

Attrition vs Overtime

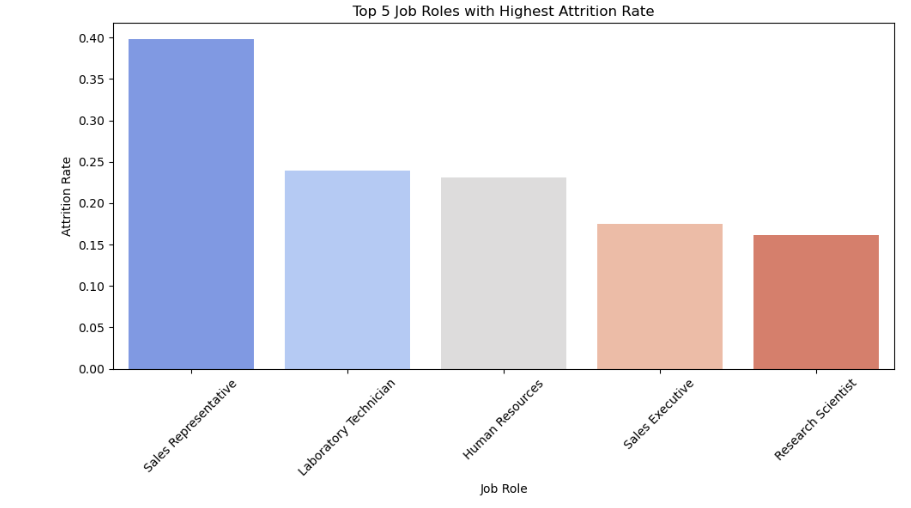

Attrition vs Job Role

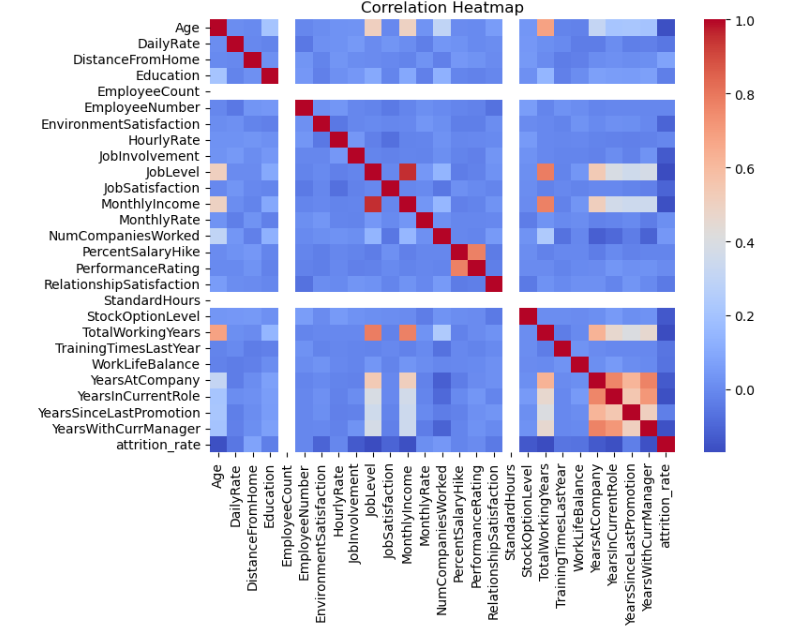

Linear correlation — no strong relationships

Part 3 — Machine Learning

Models: Decision Tree, Logistic Regression, Random Forest
Random Forest performed best overall
Key features in Random Forest: WorkLifeStress, OverTime, MonthlyIncome, Income per Experience
Feature importance varies by model, confirming non-linear, multivariate relationships

Visuals — 3

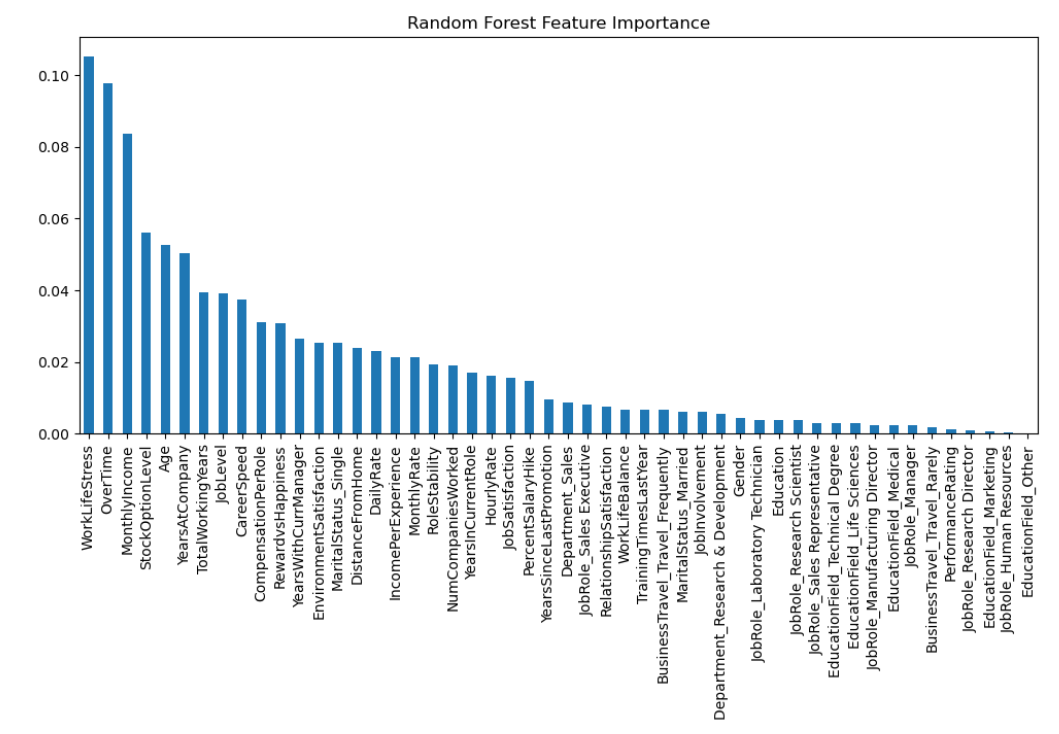

Random Forest Feature Importance

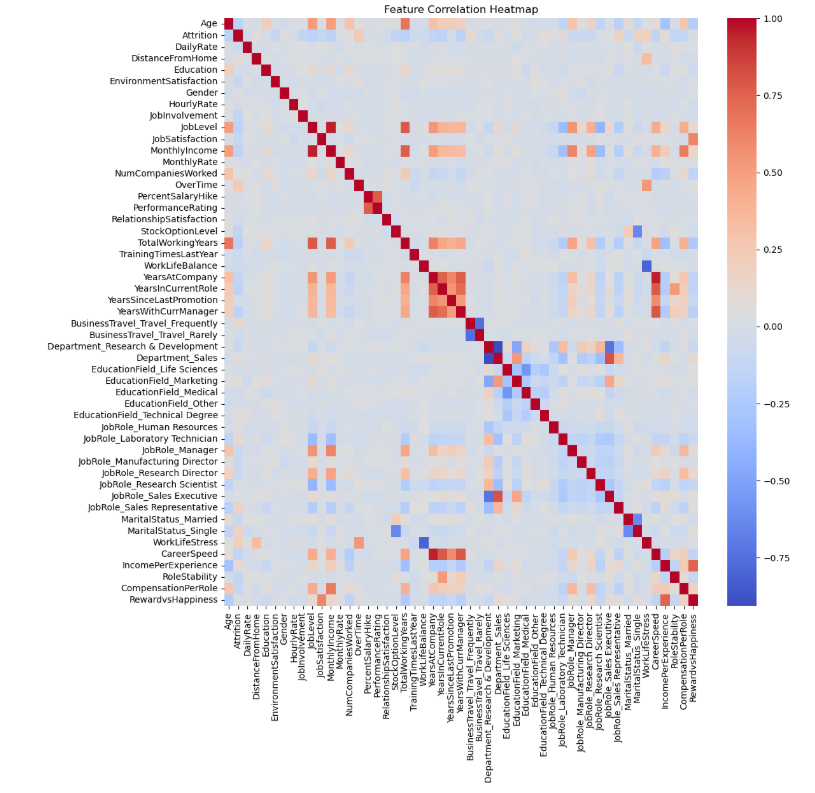

ML-informed correlation

Key Takeaways

Attrition patterns differ between visual inspection and model-based analysis
Workload, career stage, and compensation are more predictive than department or demographics
Reducing overtime or addressing Work–Life Stress may help retain employees

Part 4 — Power BI Insights

Overall Dashboard

Overall Dashboard View

This dashboard provides an operational view of attrition across the full employee population. Attrition is consistently higher among employees working overtime, making workload the most visible risk factor across departments. High work–life stress clusters strongly among employees who leave, while income remains widely distributed, indicating that compensation alone does not explain attrition. Job role comparisons show substantial variation in attrition rates, but roles with larger headcounts contribute most to overall attrition impact.

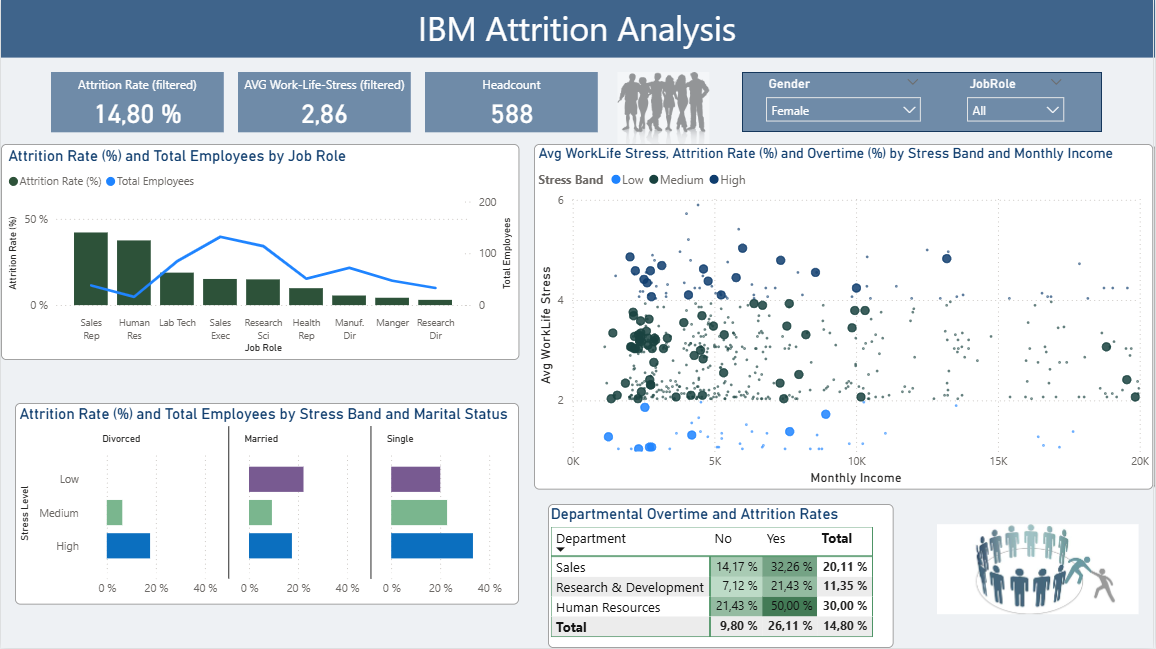

Dashboard Slice - Female

Gender-Filtered View (Female)

Filtering by gender alters overall attrition rates but preserves the dominant structure: overtime and work–life stress remain the primary drivers of employee exits. Overall attrition is moderately higher among male employees (~17%) than female employees (~14.8%), but role-level patterns reveal more important distinctions. Sales Representatives and Human Resources roles exhibit disproportionately high attrition relative to headcount for both genders. Among female employees, attrition within both Sales Representatives (~45%) and Human Resources (~40%) approaches, while among male employees, attrition reaches ~40% in Sales Representatives but is notably lower in Human Resources (~26%). These differences suggest that while certain roles carry elevated attrition risk across genders, the magnitude of that risk varies by gender–role combination rather than gender alone.

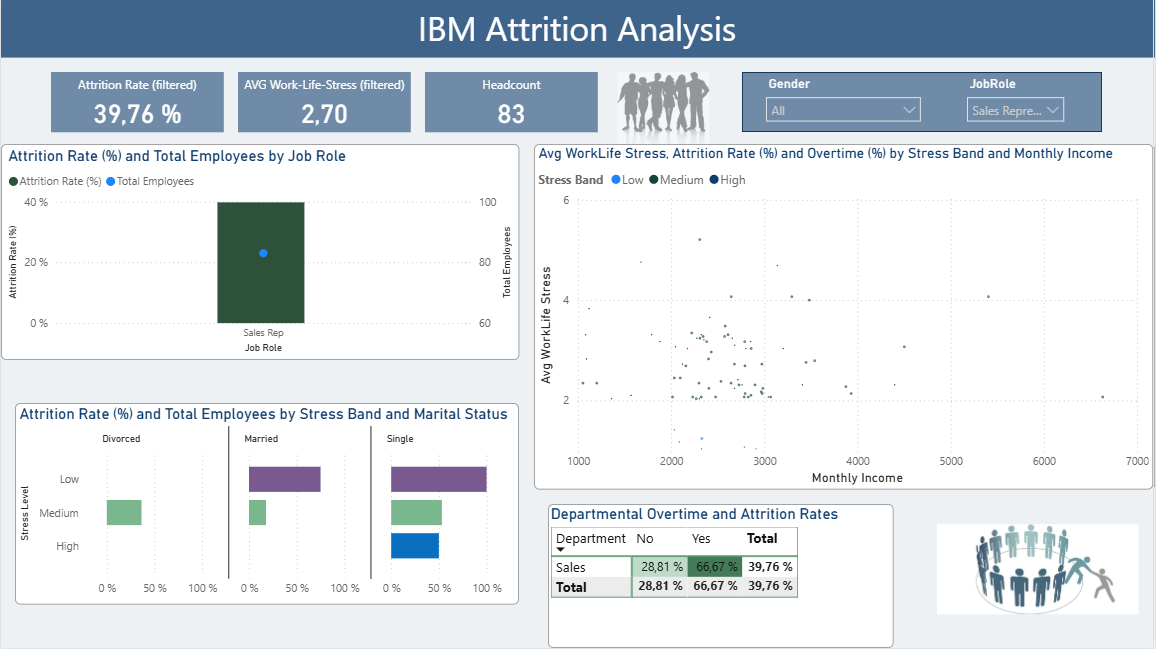

Dashboard - Sales

Sales-Filtered View

Within Sales roles, attrition risk becomes more concentrated. Overtime-related attrition increases substantially, and high work–life stress is tightly associated with employee exits, indicating that elevated attrition in Sales is driven primarily by workload conditions rather than role identity alone.

Cross-View Summary

Across all dashboard views, filtering changes the scale of attrition but not its drivers. Overtime and work–life stress consistently emerge as the strongest contributors, while department, role, and demographic breakdowns provide contextual detail, (like gender influencing attrition magnitude within specific roles) rather than independent explanations. These findings align with the statistical and machine learning results, reinforcing that attrition in this dataset is primarily driven by workload intensity, work–life stress, and compensation relative to experience.

Actionable HR Implications

Overtime-focused interventions: Use the dashboard to identify roles and teams where overtime coincides with high attrition and prioritize workload rebalancing, staffing adjustments, or overtime caps in these areas.
Targeted work–life stress mitigation: Direct retention programs toward employees and roles exhibiting elevated work–life stress rather than applying uniform, organization-wide initiatives.
Headcount-adjusted prioritization: Focus retention efforts on roles that combine high attrition rates with large employee populations to maximize organizational impact.
Role-specific retention strategies: Treat Sales and Human Resources roles as priority segments for intervention, while tailoring actions by gender and role where attrition magnitude differs.
Monitoring early warning signals: Use changes in overtime and stress distributions over time as leading indicators to evaluate whether retention initiatives are having measurable effects.

Dataset

Anonymized HR data including demographics, career, compensation, and work conditions
IBM HR Analytics Attrition Dataset on Kaggle

Notes

Notebooks available in GitHub project repository
